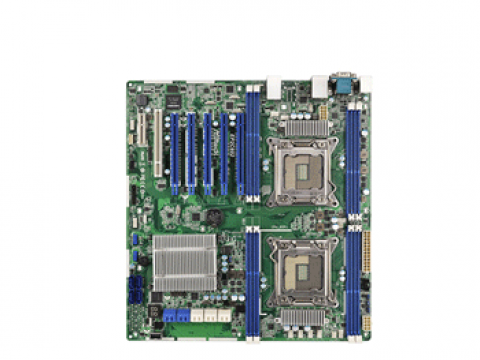

Mainboard Asrock Rack EP2C602 - Dual CPU Socket 2011

Mainboard Asrock Rack EP2C602

Dual Socket R (LGA2011) Hỗ trợ Intel Xeon processor E5-1600/2600/4600 & v2 series


Giá: 8.050.000 đ

Bảo hành: 36 Tháng Kho hàng: Sẵn hàng


Thông tin mua hàng:


CPU – Intel® Xeon® processor E5-1600/2600/4600 & v2 series
– Supports Hyper-Threading Technology



Intel Xeon E5-1600 hỗ trợ trên 1 socket
Socket – Dual Socket R (LGA2011)
Power Design – 6 +1 Power Phase Design
Chipset – Intel® C602
 Bộ nhớ hỗ trợ
Dung lượng hỗ trợ – 8x 240-pin DDR3 DIMM slots
– Support up to 256GB DDR3 R/LR DIMM ; 64GB ECC/non-ECC unbuffered UDIMM
Loại Ram  – Quad Channel DDR3
– Hỗ trợ DDR3 1866/1600/1333/1066 R/LR ECC and UDIMM
Voltage – 1.5V, 1.35V
 Khe cắm mở rộng
PCIe 3.0 x 16 – 5 slots
– 3 x PCIE3/PCIE6/PCIE7 : x16 mode
– 1 x PCIE4: x8/x0 mode
– 1 x PCIE5: x16/x8 mode
PCIe 3.0 x 4 – 1 slot
PCI – 1 slot
 Công lưu trữ
SATA Controller – Intel® C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s, support RAID 0, 1, 5, 10
and Intel® Rapid Storage 3.0, NCQ, AHCI and “Hot Plug” functions
Additional Storage Controller – Marvell SE9230: 4 x SATA3 6.0 Gb/s, hỗ trợ RAID 0, 1, 10, NCQ, AHCI and
“Hot Plug” functions
 Ethernet
Chuẩn LAN – Gigabit LAN 10/100/1000 Mb/s
LAN Controller – 2 x Intel® 82574L
– Supports Wake-On-LAN
– Supports Energy Efficient Ethernet 802.3az
– Supports Dual LAN with Teaming function*
– Supports PXE



* Intel® 82574L discontinues official driver support for Microsoft® Windows® 2012 R2 (x64)
 Management
BMC Controller – ASPEED AST2300
IPMI Dedicated GLAN – 1 x Realtek RTL8211E for dedicated management LAN
Features – Watch Dog
– NMI

 Đồ họa

Controller – ASPEED AST2300
VRAM – DDR3 16MB
Cổng ra – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
 Cổng I/O phía sau
PS/2 KB/Mouse – 2
VGA Port – 1 x D-Sub
USB 2.0 Port – 2
Lan Port – 2 x RJ45 Gigabit Ethernet LAN ports
– 1 x RJ45 Dedicated IPMI LAN port
– LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port – 1 (COM1)
 Cổng kết nối bên trong
COM Port Header – 1 (COM2)
Auxiliary Panel Header – 1 (includes chassis intrusion, location button & LED, front LAN LED)
TPM Header – 1
Thermal Sensor Header – 1
IPMB Header – 1
Buzzer – 1
Fan Header – 8 (8 x 4-pin or 6 x 4-pin, 2 x 3-pin)



*CPU fan headers have 3-pin and 4-pin ones. Two types couldn’t be used at the same time.
ATX Power – 1 (24-pin) + 2 (8-pin)
USB 2.0 Header – 2 (each support 2 USB 2.0)
Type A USB 2.0 Port – 1
Front Panel – 1
Speaker – 1
Dr. Debug with LED – 1
 BIOS hệ thống
Kiểu BIOS – 64Mb AMI UEFI Legal BIOS
Tính năng BIOS – Plug and Play (PnP)
– ACPI 1.1 Compliance Wake Up Events
– SMBIOS 2.3.1 Support
– DRAM Voltage Multi-adjustment
– ASRock Instant Flash
 Quản lý phần cứng
Temperature – CPU Temperature Sensing
– System Temperature Sensing
Fan – CPU/Rear/Front Fan Tachometer
– CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
– CPU/Rear/Front Fan Multi-Speed Control
Voltage – Voltage Monitoring: CPU1/2, DRAM1/2, VTT1/2, VCCSA1/2, 3V/5V/ 12V, +
1.05V_PCH, +BAT, 3VSB, 5VSB
 Hệ điều hành hỗ trợ
Hệ điều hành Microsoft® Windows®
– Server 2008 R2 (x64)
– Server 2012 (x64)
– Server 2012 R2 (x64)
Linux
– RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
– CentOS 5.5 / 6.4 (x32 and x64)
– SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
– FreeBSD 9.1 (x32/x64)
– Fedora core 18 (x64)
– Ubuntu 12.04/12.10 (x64)
Virtual
– VMWare® ESXi 5.1 (Marvell SE9230 và Marvell SE9172 không có driver hỗ trợ VMWare)
