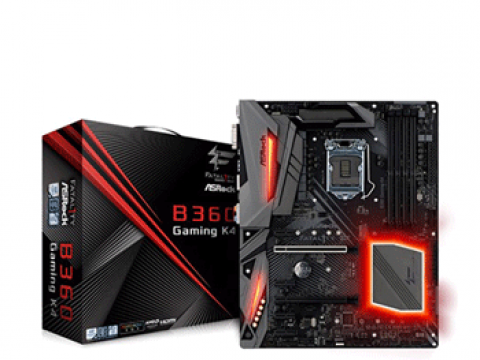

Mainboard Asrock B360 Gaming K4 - Mainboard Asrock chính hãng

Mainboard Asrock B360 Gaming K4

Hỗ trợ Intel Socket 1151 for 8th Generation Core Processors/ chipset Intel B360


Giá: 3.100.000 đ

Bảo hành: 36 Tháng Kho hàng: Sẵn hàng


Thông tin mua hàng:


CPU Intel® Socket 1151 for 8th Generation Core™ Processors
Chipset / Socket

Intel® B360
Bộ nhớ (RAM) – Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB*
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots
Công nghệ đa GPU AMD Quad CrossFireX™ and CrossFireX™
Khe cắm mở rộng 2 x PCI Express 3.0 x16 Slots
4 x PCI Express 3.0 x1 Slots
LAN / Wireless Giga PHY Intel® I219V
Âm thanh Realtek ALC1220 Audio Codec
Cổng kết nối (Internal)

– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion header
– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 1 x Addressable LED Header**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x Thunderbolt™ AIC Connector (5-pin)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Cổng kết nối (Back Panel) – 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.2
– 1 x Optical SPDIF Out Port
– 2 x USB 2.0 Ports (Supports ESD Protection)*
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
